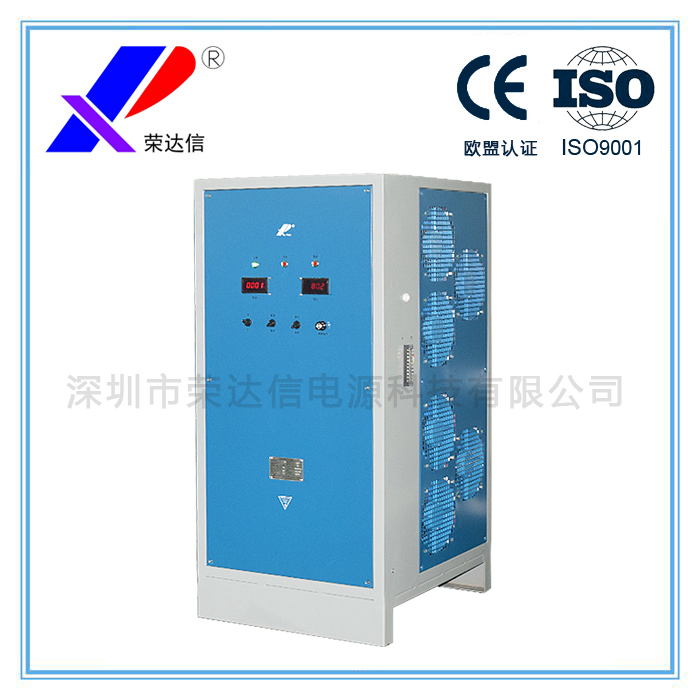

Product specification
Model (customizable) | Cooling mode | Weight(KG) | Size(CM) |
PWH300A-300V-SZ3TSL | Air cooling | 150 | 68-56-112 |
PWH1000A-36V-SZ1TB | Water-cooling | 320 | 55-44-60 |
PWH3000A-20V-F1TMA | Air cooling | 150 | 68-56-112 |
PWH15000A-18V-SZARMX | Water-cooling | 500 | 135-70-185 |
PWH20000A-15V-SZARHX | Water-cooling | 550 | 135-70-185 |
There are many models, which can be customized according to requirements (output voltage 0 ~ 300V, current 0 ~ 30000A) and additional functions. | |||
Product parameters
Input voltage | Three phases: AC380V 50/60HZ |
AC：220V、415V | |
Output voltage | 0～300V |
Output current | 0～30000A |
Output waveform | 30kHz DC square wave |
Direct current | |
Output display | Digital voltage and current display |
Accuracy of steady voltage and steady current | ≤±1% |
High precision control ≤± 0.5% | |
Regulation mode | Analog stepless regulation |
Cooling mode | Air cooling type |
Water cooling type | |
Additional functions | 0 ~ 20 period |
Touch screen control | |
RS485 | |
Electronic commutation / mechanical commutation | |
Multiple on-line control systems |
Product features
1. RDX series electrolytic power supply has wide application range, high efficiency, energy saving and power saving.
2. RDX-PWH high-power electrolytic power supply adopts RDX self-developed multi group power supply parallel control system and self-developed power supply centralized DSP control system (Patent No.: ZL 202030588903.2).
3. Electrolysis is equipped with two self-developed automatic commutation switches (Patent No.: ZL 202020913637.0 and patent No.: ZL 202021043710. X), which operate more stably and reliably under high current state. The red copper bar is conductive, and the up-down switching structure is hydraulically driven, so that the commutation copper bar is closely combined, the contact resistance is small, and the transmission loss is reduced. Improve the transmission efficiency and ensure the conductivity and stability of long-time commutation.
4. The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability
5. The power supply has protection functions such as phase loss, overheating, overcurrent, short circuit, undervoltage and overvoltage.
6．High power factor, stable output frequency, high control accuracy, high voltage and current output stability, which can effectively improve product quality.
Product use
1．Stainless steel electropolishing, aluminum alloy electropolishing. Electrolysis and electrolytic recovery of non-ferrous metals such as gold, silver, platinum, aluminum, magnesium, zinc, copper, lead and manganese.
2. Electrolytic sewage treatment, electro flocculation, electrolytic descaling, electrolytic hydrogen and oxygen, electroanalysis, electrolytic purification, electrolytic rare earth smelting, etc.
