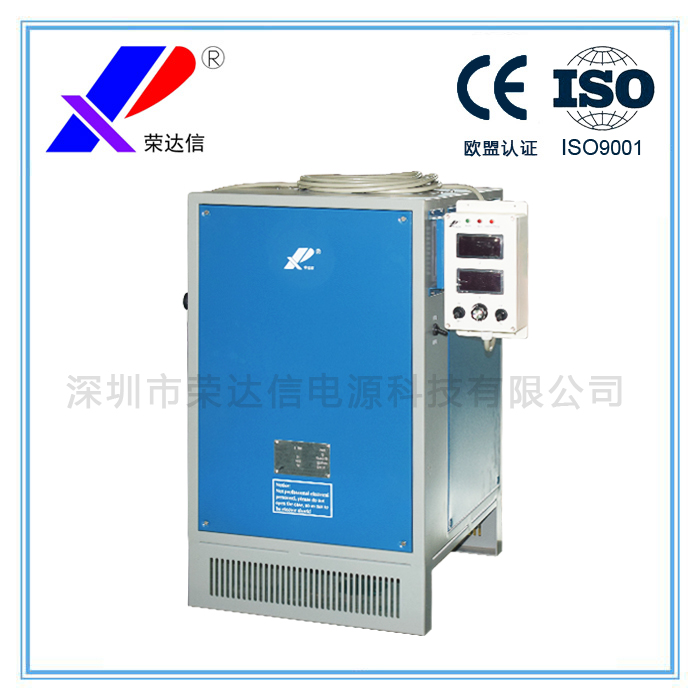

PCB electroplating rectifier power supply

Time:2022-05-17 14:05Hits:461

Product specification

Model (customizable)

Cooling mode

Weight(KG)

Size(CM)

PWH300A-6V-SZ

Water-cooling

40

39-38-22

PWH600A-6V-FZ

Air cooling

20

44-40-22

RDX-DP200A-12V-F

Air cooling

40

64-54-27

RDX-SP500A-12V-F

Air cooling

40

50-40-60

RDX-SP1000A-12V-F

Air cooling

60

51-42-75

There are many models, which can be customized according to requirements (output voltage 0 ~ 300V, current 0 ~ 30000A) and additional functions.

Product parameters

Input voltage

Three phases: AC380V 50/60HZ

AC:220V、415V

Output voltage

0~12V

Output current

0~2000A

Output waveform

Direct current

30kHz DC square wave

Adjustable pulse

Output display

Digital voltage and current display

Accuracy of steady voltage and steady current

≤±1%

High precision control ≤± 0.5%

Regulation mode

Analog stepless regulation

Cooling mode

Air cooling type

Water cooling type

Additional functions

0 ~ 20 period

Temperature control

Ammeter

RS485

Soft start

Multiple on-line control systems

Product features

1. The full bridge phase-shifting soft switch control mode is adopted to eliminate the switching stress to the greatest extent, and the most advanced 32-bit CPU and advanced 6-channel DMA controller IC in the United States are adopted. It has the function of automatically adjusting and setting trigger pulse timing parameters to achieve the best IGBT switching time and minimize IGBT switching loss. At the same time, the IC with synchronous rectification driving function is adopted to simplify the synchronous rectification driving circuit, and its operation is more stable and reliable (Patent No.: ZL 202020629870.6).

2. Synchronous rectification technology is adopted, and imported MOS tube is used to replace the traditional rectifier tube. Make its efficiency save 10-20% power consumption compared with the conventional power supply of the same specification in the market.

3. The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability

4.  The power supply has protection functions such as phase loss, overheating, overcurrent, short circuit, undervoltage and overvoltage.

5. High power factor, stable output frequency and high control precision. High voltage and current output stability can effectively improve product quality.

6. The PCB electroplating rectifier uses RDX series DC power supply, high-frequency switching power supply, single pulse power supply and double pulse power supply.

Product use

It is suitable for PCB electroplating, gold plating, silver, nickel and other single and double-sided printed boards, electronic aluminum platinum and so on.
