Product specification
Model (customizable) | Cooling mode | Weight(KG) | Size(CM) |
PWH100A-100V-FZ1TSLI | Air cooling | 40 | 50-40-60 |
PWH100A-200V-FZ1TSLI | Air cooling | 60 | 40-50-60 |
PWH100A-300V-FZ1TSLI | Air cooling | 100 | 51-42-75 |
PWH200A-200V-FZ1TSLI | Air cooling | 100 | 70-52-68 |
PWH200A-300V-FZ1TSLI | Air cooling | 170 | 68-56-112 |
There are many models, which can be customized according to requirements (output voltage 0 ~ 300V, current 0 ~ 30000A) and additional functions. | |||
Product parameters
Input voltage | Three phases: AC380V 50/60HZ |
AC：220V、415V | |
Output voltage | 0～400V |
Output current | 0～1500A |
Output waveform | 30kHz DC square wave |
Direct current | |
Output display | Digital voltage and current display |
Accuracy of steady voltage and steady current | ≤±1% |
High precision control ≤± 0.5% | |
Regulation mode | Digital step adjustment |
Cooling mode | Air cooling type |
Water cooling type | |
Additional functions | 0 ~ 20 period |
RS485 | |
Soft start | |
Multiple on-line control systems |
Product features

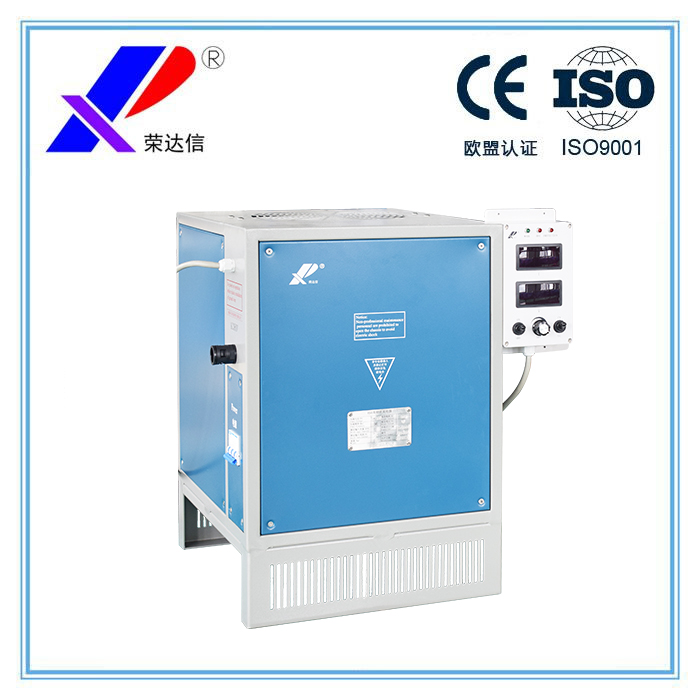

1. RDX series electrophoresis special power supply adopts high-frequency inverter and automatic compensation. The voltage soft start rising technology can effectively improve the painting speed and film adhesion.
2. The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability
3. The power supply has protection functions such as phase loss, overheating, overcurrent, short circuit, undervoltage and overvoltage.
4． High power factor, high efficiency, stable output frequency, high control accuracy, high voltage and current output stability, which can effectively improve product quality.
Product use
It is widely used for cathodic and anodic electrophoretic treatment of metal materials in bicycle, auto parts, aviation, building materials and other industries.
