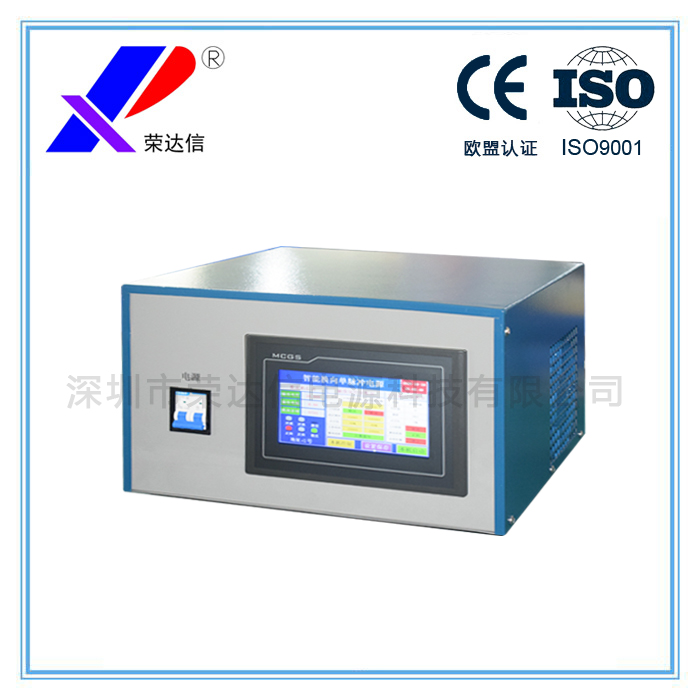

Single pulse power supply

Time:2022-05-17 14:08Hits:243

Product parameters

Input voltage

Output voltage

Single-phase: AC220V 50/60HZ

Three phases AC380V

Output current

0~36V

Output waveform

0~2000A

Output frequency

Input voltage

Square wave

Direct

Output voltage

100-3000HZ

Maximum pulse width

10MS

Minimum pulse width

0.33MS

Operation interface

Touch screen man-machine control

Output display accuracy

4 digits

Accuracy of steady voltage and steady current

≤±1%

Output control mode

Voltage stabilizing and current stabilizing states are optional (and limited in both directions)

Cooling mode

Air cooling type

Time control

5 periods of time

Duty cycle control

1~100%

Additional functions

RS485

Commutation function

Multiple on-line control systems

About pulse power supply

Firstly, after slow energy storage, the primary energy has enough energy, and then charge the intermediate energy storage and pulse forming system. The energy is stored, compressed and pulsed. After digital processing, it is quickly discharged to the load. In the pulse process of pulse power supply, when the current is on, the pulse (peak) current is equivalent to several times or even dozens of times of ordinary DC current. It is this instantaneous high current density that reduces metal ions under extremely high overpotential, so as to make the grain of deposition layer thinner. When the current is turned off, the discharge ions near the cathode area return to the initial concentration and the concentration polarization is eliminated, which is conducive to the continuous use of high pulse (peak) current density in the same period of the next pulse. At the same time, during the turn off period, there are also phenomena such as recrystallization, adsorption and desorption beneficial to the deposited layer. Such a process runs through the whole electroplating process at the same time, and the mechanism contained therein constitutes the most basic principle of pulse electroplating. Practice has proved that pulse power supply has incomparable advantages over traditional DC in refining crystallization, improving physical and chemical properties of coating and saving precious metals.

Product features

1. The single pulse power supply is suitable for electroplating gold, silver, nickel, tin, copper and their alloy materials, which can significantly improve the functionality of the coating. It is used for protective and decorative electroplating, which can make the coating uniform color, good brightness and strong corrosion resistance. When pulse power supply is used for precious metal purification, the purity of precious metal is higher.

2. The adjustable single pulse power supply uses the color touch screen human-machine interface display control, and the operation is simple, intuitive and convenient.

3. The touch screen man-machine interface has the functions of voltage or current setting, frequency setting, duty cycle setting, multi period setting, etc.

4. Touch screen man-machine interface has external communication interface. Equipped with RS-485 (Modbus Protocol) local control and remote control switching function.

5. The power host has the advantages of small volume, light weight, elegant appearance, convenient installation, safe use, anti-corrosion and durability

6. The power supply has protection functions such as overheating, overcurrent, short circuit, undervoltage and overvoltage.

7. High power factor, stable output frequency, high control accuracy, high voltage and current output stability can effectively improve product quality.



Product use

1. Electroplating industry: applicable to precious metal electroplating and circuit board electroplating. Precision surface treatment process for high-end products such as gold plating, silver, rhodium, palladium and iron.

2. Electric polishing and deburring industry: pulse electrochemical polishing and plasma polishing.

3. Electrical processing industry: Pulse Electrochemical precision machining and precision etching are mainly used to process precision devices with high hardness.

4. Special industries: nano electrodeposition, precious metal electrolysis, etc.


single pulse waveform
